[ BOBER // MODULAR FPV PLATFORM ]

PLATFORM CONFIGURATOR

Modular FPV airframe, two sizes. Configure the optics and data link below — visualization updates across all four projections.

AIRFRAME
V-03 · SIDE

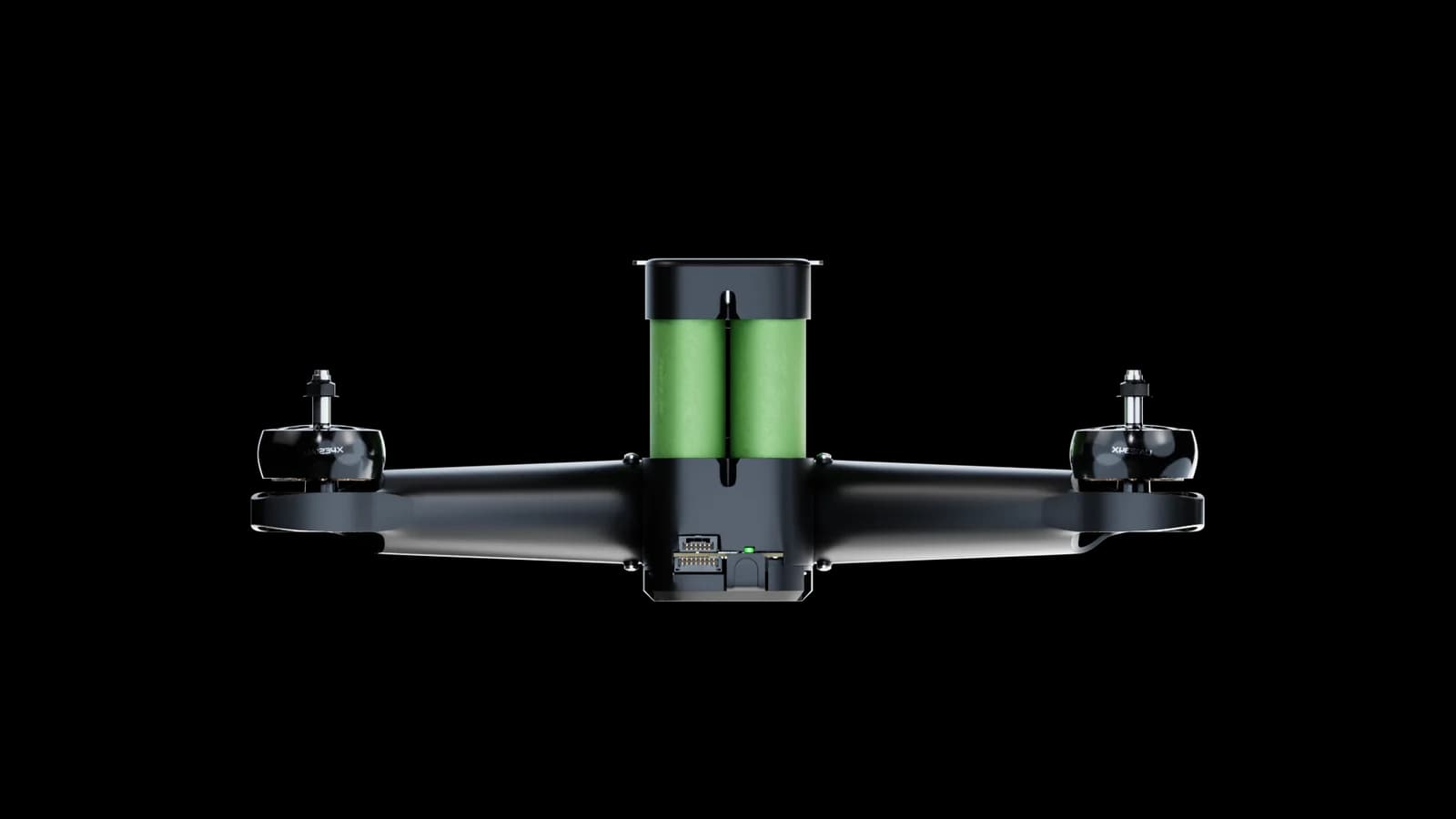

Bober 7" side
ANALOG THERMAL · side

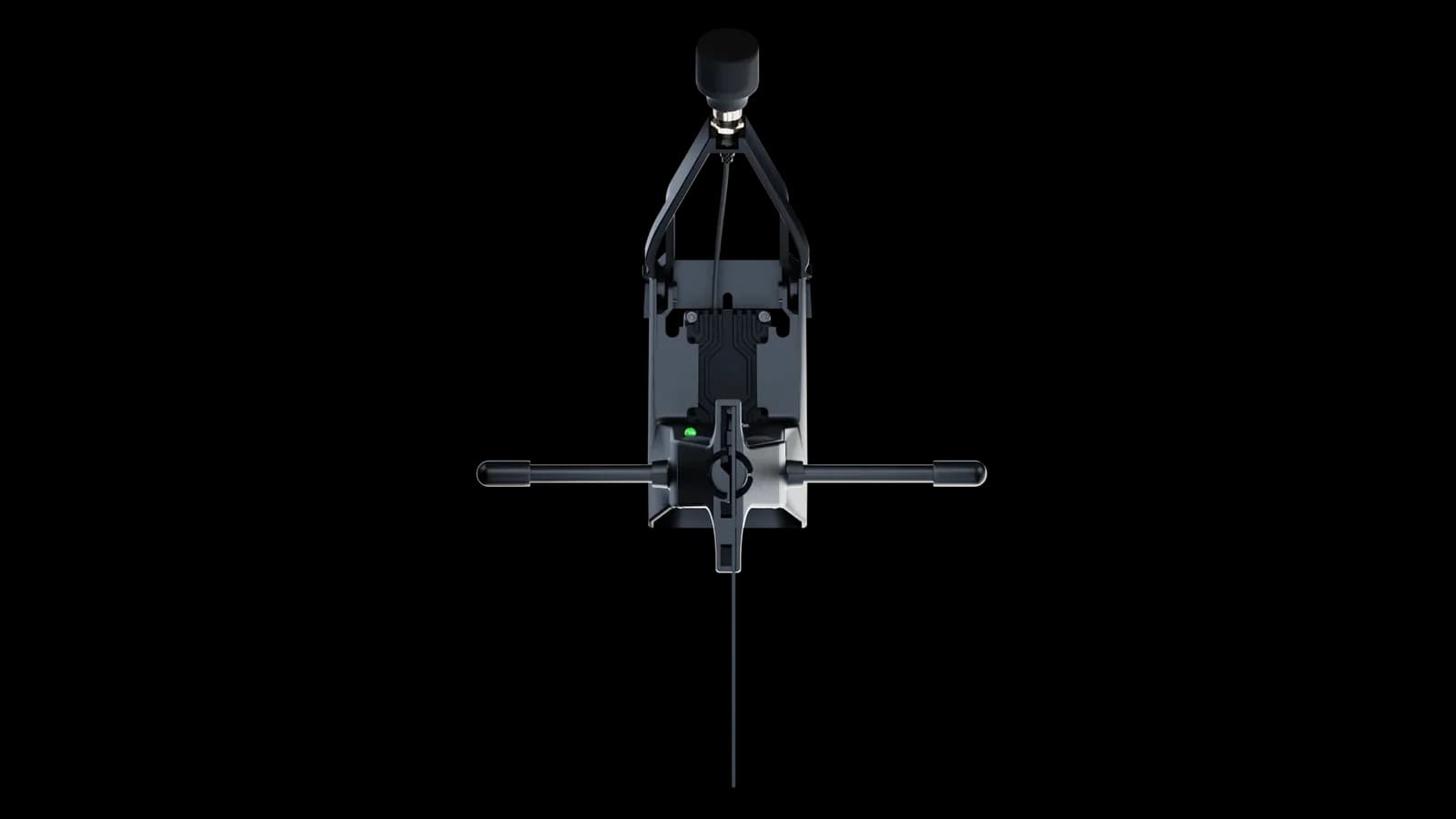

GEMINI RC + VTX 5.8 GHZ · side
SIGNATUREBOBER 7" / ATH / GVT
ACTIVE LOADOUT
AIRFRAME

Seven-inch FPV airframe. Optimised for short to medium range operations, urban environments and rapid response.

COMPONENTS
  • · In-house chassis (injection-molded plastic)
  • · Integrated battery (Samsung cells)
  • · iFlight XING2 2809 FPV Motor Unibell (1250KV)
  • · In-house main board:
    • – H743 flight controller
    • – Integrated barometer with dual gyroscope/accelerometer system
    • – ESC
    • – BMS for battery balancing
    • – Power switch with button activation and charge indicator
SPEED
120 km/h
PAYLOAD
up to 1.5 kg
ENDURANCE (EMPTY)
up to 40 min
ENDURANCE (1 KG)
up to 16 min
OPTICS

Thermal imaging camera with uncooled vanadium oxide microbolometer. High resolution; operates in the 8–14 µm wavelength range.

RESOLUTION
620 × 512
DATA LINK

Long-range RC link with integrated 5.8 GHz analog video transmitter. Standard pairing for analog camera modules. Control frequencies configurable on request.

VIDEO BAND
5.8 GHz
CONTROL
868 MHz · on request
CONTROL
2.4 GHz · on request
